Sizing Guide

Will it Fit?

Check if our Smart Locks will fit your current door with minimal to no adjustments using our questionnaire below:

Question 1

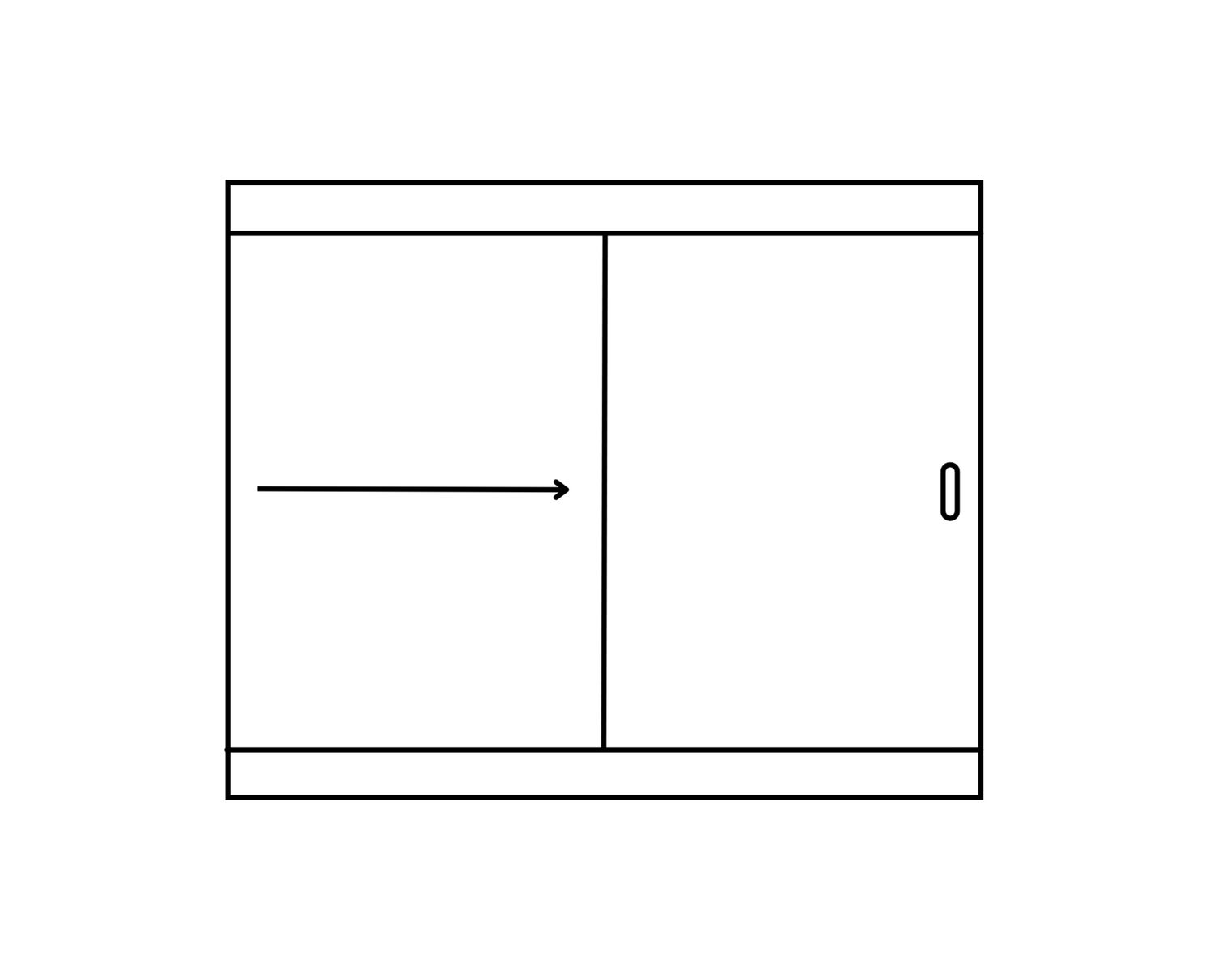

Does your door swing?

  • Yes: Our locks are designed for swing doors
  • No: If your door slides, please contact our team

Question 2

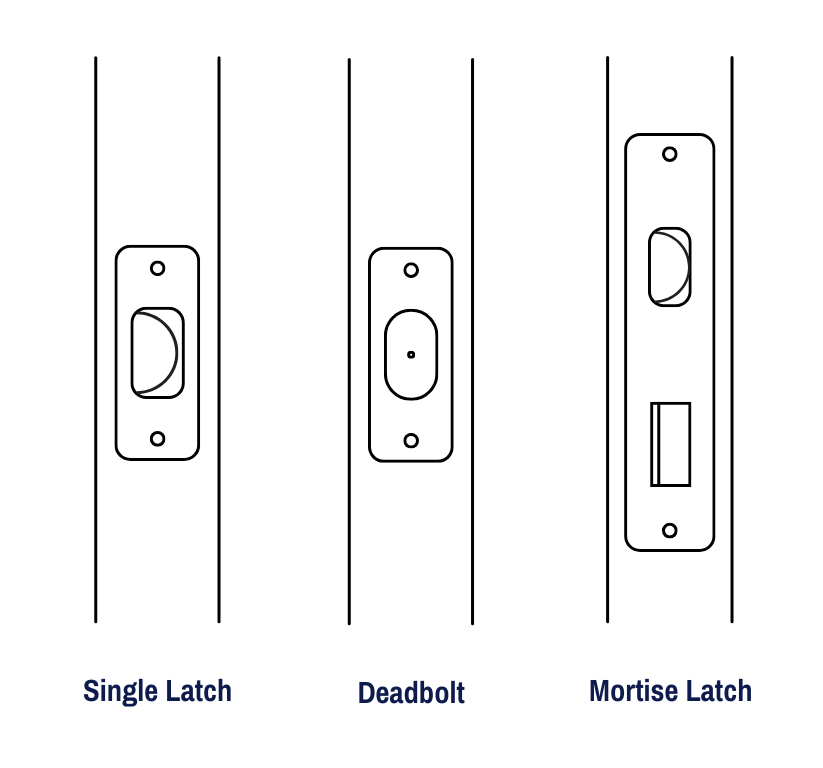

Does your door have a single latch or deadbolt lock?

  • Single Latch: We recommend the Smart Lock or Smart Handle
  • Deadbolt: We recommend the Smart Deadbolt

For an existing door with a Mortise Latch, please contact our team

Question 3

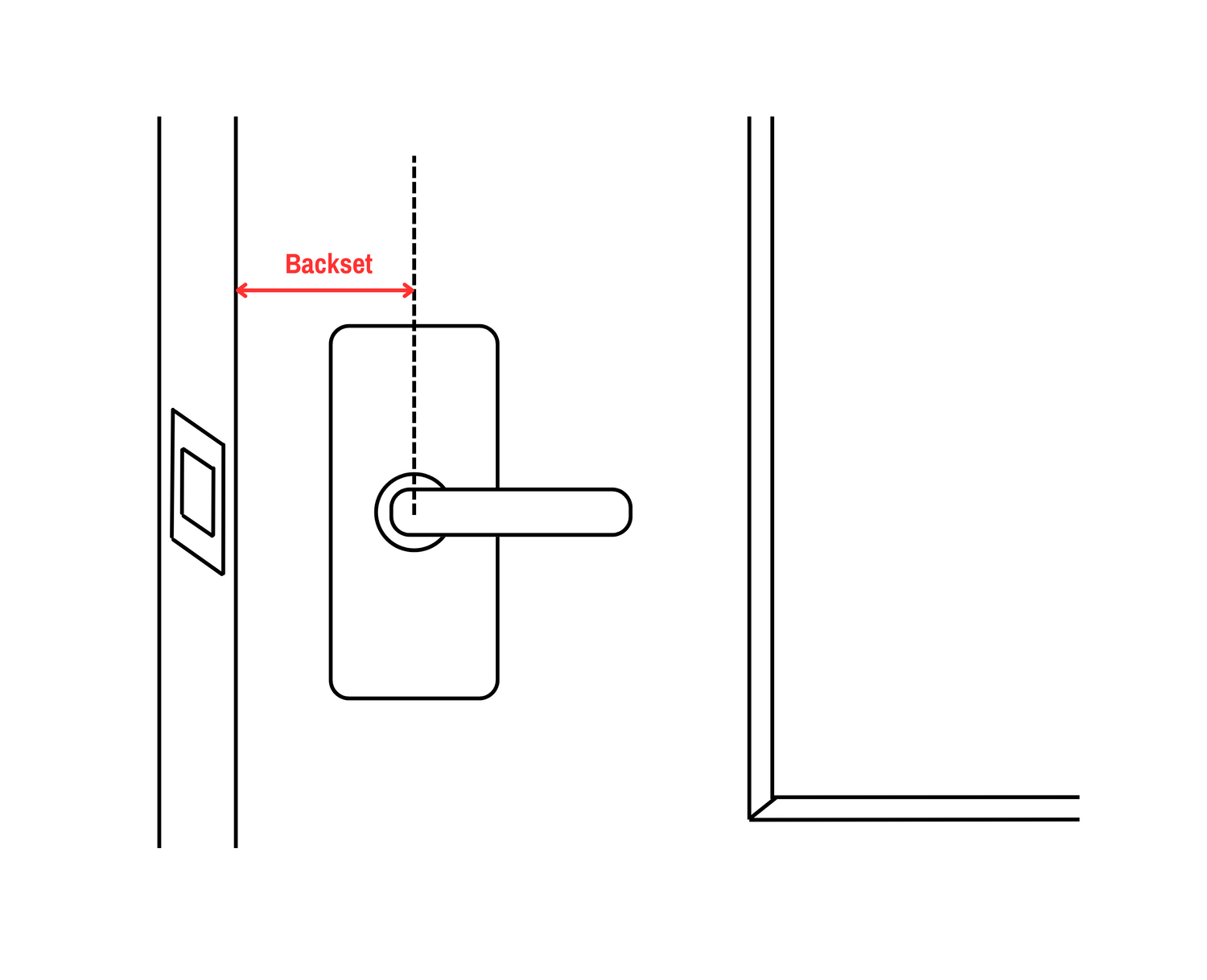

Is your backset 60 to 70 mm?

The backset is the distance from the edge of your door to the center of the handle. You will need to ensure your backset is between 60 to 70 mm.

Question 4

Measure your lock faceplate

Our Smart Locks include a faceplate with the following measurements:

  • Height: 57 mm
  • Width: 25 mm

Please check that these measurements match your existing faceplate. If the opening is too small, you can slightly enlarge the space using a chisel and hammer.

Compare our Products Below
